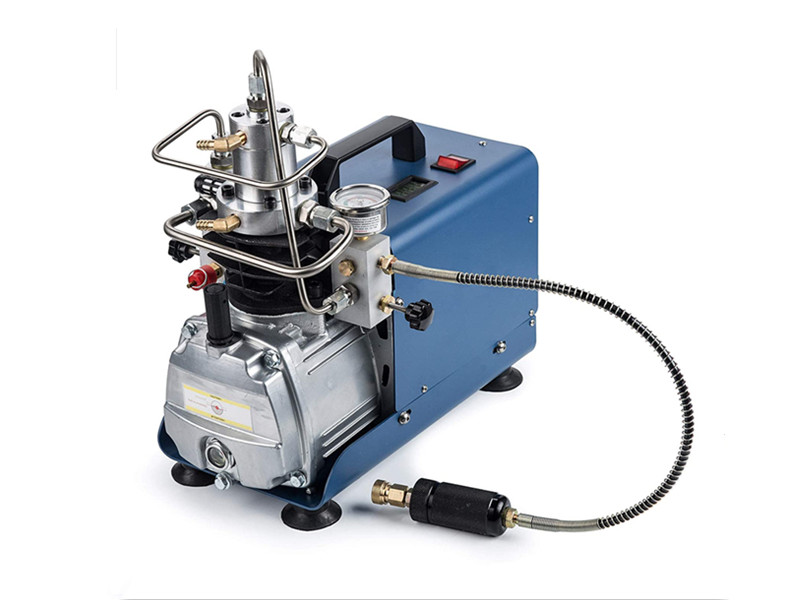

High-Pressure Electric Air Compressor Pump

Specification

• Voltage: 110V
• Power: 1.80KW
• Working Pressure: 300BAR / 30MPA/ 4500PSI
• Working Capability: 50 L / min
• Inflating Speed: 2800 r / min
• Weight: 44.1 lb.
• Filling Time: 1L/ 10 minutes
• Cooling System: Water
• Oil Standard: ISO VG46 & AW46

Package List

• 1 x Air Compressor Pump
• 2 x Main Machines
• 1 x Hose Female
• 1 x Water Pump
• 1 x Water Cooling Pump
• 2 x Pressure Relief Screw
• 1 x Certification
• 1 x Spare Part
• 1 x Bag
• 1 x Separator
• 2 x Power Cables

Note:

1. USE PROPER POWER SUPPLY: Make sure to connect this to a socket that can take over 8A electric current, or the circuit may be damaged.
2. OIL REQUIRED: Fill it up with proper oil before using it. Compatible oil: ISO VG46 & AW46 oil (NOT included）.
3. COOLING WATER REQUIRED: Never start the pump before you have enough cooling water prepared. To prevent overheating, please change water every 30 minutes.
4. COOL DOWN: Overworking (Over 30 minutes) or overheating (over 176°F) will lead to an automatic shut-off. If that happens, stop the item for a while and let it cool down.
5. KEEP AN EYE ON THE OIL: Make sure oil level stays above the red dot. Replace the oil if the color of oil changes.
6. TURN IT OFF MANUALLY: The item won’t stop automatically when the pressure reaches 30MPA/300BAR. YOU HAVE TO TURN IT OFF MANUALLY.
7. Do not touch the hot cylinder head right after it stops working.
8. Never use this in humid environment or near inflammable material. Keep it out of children’s reach.
